Name: 0412mm 2 In 1 Omega Profile Roof Truss Roll Forming Machine
Brand: Sussman
Price: 1 USD

Brand Name : Sussman

Model Number : SM-OM

Certification : SGS, ISO9001, CE

Place of Origin : Wuxi Jiangsu China

MOQ : 1 set

Price : negotiable

Payment Terms : L/C, T/T

Supply Ability : 10 sets per month

Delivery Time : 60 days after deposit

Packaging Details : Standard packing

Material : 0.4-1.2MM Galvanized steel

Forming speed : 0-12m/min

Forming stations : About 12 stations

Weight : 3000KGS

Roller material : Gcr15 steel with quenching

Application : Roof ceiling, ceilling batten

Cutting : Hydraulic cutting

Contact Now

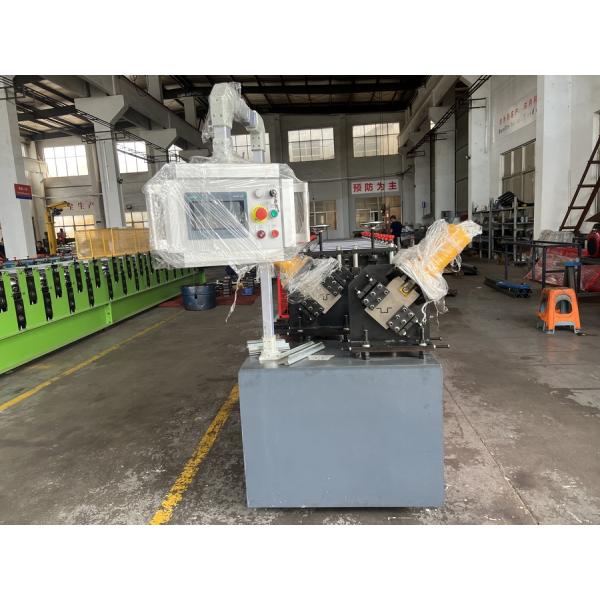

0.4-1.2mm 2 In 1 Omega Profile Roof Truss Roll Forming Machine

2 in 1 machine is to make two profiles in one machine. It can help clients save costs and space.

Technical parameter

Item	Technical data
Steel sheet thickness	0.4-1.2mm galvanized steel,PPGI,GI
Hydraulic power	4kw
Transmission way	chain driven
Capacity of Decoiler	3 Tons passive
Forming Speed	0-12m/min
Roller Groups	about 12 rollers with ribs
Roller Material	45# high grade steel, high frequency quenched HRC58-62
Roller Diameter	60mm
Principal Axis	45# high grade steel with quenching treatment
Main Motor Power	5.5 KW
Dimension	About 500012001500mm

Profile drawings

0.4-1.2mm 2 In 1 Omega Profile Roof Truss Roll Forming Machine

Main Components

Advantages of a 2-in-1 Machine

Cost-Effective: One machine does the job of two, offering a much better return on investment.
Saves Space: Requires significantly less factory floor space.
Operational Efficiency: One operator can run the entire line for both products.
Quick Changeover: Switching between profiles can often be done in 15minutes, allowing for flexible production scheduling to meet varying customer demands.
Consistent Quality: Automated production ensures every piece is identical, with high dimensional accuracy.

0.4-1.2mm 2 In 1 Omega Profile Roof Truss Roll Forming Machine

0.4-1.2mm 2 In 1 Omega Profile Roof Truss Roll Forming Machine Images
