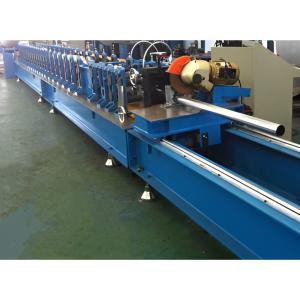

Axes Awning Pergola Tube Roll Forming Machine 0.6mm - 1.2mm Laser Welding Galvanized

Name: Axes Awning Pergola Tube Roll Forming Machine 06mm 12mm Laser Welding Galvanized
Brand: Sussman
Price: 1 USD

Wholesale Axes Awning Pergola Tube Roll Forming Machine 0.6mm - 1.2mm Laser Welding Galvanized from china suppliers

Brand Name : Sussman

Model Number : SM-OP

Certification : CCC, SGS, ISO9001, CE

Place of Origin : Wuxi Jiangsu China

MOQ : 1 set

Price : negotiable

Payment Terms : L/C, T/T, Western Union, MoneyGram, D/P

Supply Ability : 10 sets per month

Delivery Time : 75days

Packaging Details : Standard packing

Type : Awning Pergola Tube Roll Forming Machine

Material : 0.6mm-1.2mm Galvanized Steel

Stations : About 30 stations

Motor power : 7.5KW*2

Contact Now

0.6mm-1.2mm Thickness Laser Welding Galvanized Steel Axes Awning Pergola Tube Roll Forming Machine with LED Light


In Thailand, Vietnam area, Outdoor Pergola Tube is hot sale, especially the awning tube with the LED lights.

A Technical parameter:
 1. Machine specification: forming thickness 0.6mm galvanized coils
 2. Forming speed: 0-10meters /min (EXCLUDING CUTTING STOP TIME)
 3. Forming roller: about 30stations
 4. Main motor power: 7.5KW*2
 5. Roller material: 45# forged steel, surface coated with chrome
 6. Main shaft material: 45# steel
 7. Main axis dia.: ￠60mm
 8. Cutting blade material: Cr12 quenching treatment
 9. Electrical controlling system: Whole line adopted PLC control, cut to length tolerance≤2mm
 10. Water cooling system
 11. Gearbox Drive
Machine List:
  	 			Serial No.
 			Commodity & Description
 			Quantity

 			1
 			3T manual un-coiler
 			1 set

 			2
 			Feeding guiding
 			1 set

 			3
 			Main roll forming machine
 			1 set

 			4
 			Output table
 			1 set

 			5
 			Main drive
 			1 set

 			6
 			Stop Saw Cutting
 			1 set

 			7
 			Control box
 			1 set

 			8
 			Laser Welding Machine with Cooling system
 			1 set

 			9
 			Safety cover
 			1 set

 			10
 			Spare part
 			1 package



Profile Drawings:


Samples:

Application:





Product Tags:

Axes Awning Pergola Roll Forming Machine

Pergola Tube Roll Forming Machine 1.2mm

7.5KW*2 Pergola Tube Roll Forming Machine

Axes Awning Pergola Tube Roll Forming Machine 0.6mm - 1.2mm Laser Welding Galvanized Images
